Product Description

High strength: The 3D fence is composed of steel wire mesh and steel pipe, which has high tensile strength and compressive strength, which can effectively prevent external damage.

Clearvu fencing specification:

Panels

The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.

Post
Square post: 40 x 40mm; 50 x 50mm; 60 x 60mm; 80 x 80mm
Rectangle pst: 40 x 60mm; 60 x 80mm
Post thickness:1.2mm; 1.5mm; 2.0mm; 2.5mm

Coating
Panels are manufactured from pre-galvanized wires.
An adhesion coating is applied to allow perfect adhesion with the polyester coating (min. 100 micron).
Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.
Colours
Standard colours are Green RAL6005 and Black RAL9005.
Other colours are available on request.

Mesh	Wire Diameter	Panel Width	Panel Height	Post Type
76.2x12.7mm 75x12.5mm 75x25mm 75x50mm	Horizantal Wire: 3.2, 3.5, 4mm Vertical Wire: 4mm	1m-3m popular: 2.2m/2.5m/3m	1m-6m popubr: 2.5m/3m	Square Post(SHS) 60x60x2/2.5/3mm 80x80x2/2.5/3mm	Roctangular Post(RHS) 40x60x2/2.5/3.0mm 40x80x2/2.5/3.0mm 60x80x2/2.5/3.0mm
Surface Treatment: hot dipped galvanized, galvanized + powder coated
V-top: including angle iron, barbed wire,razor barbed wire
Connecting Methods: iom bar, hexagonal clamp, screws
Color: RAL 6005 green, RAL 7016 gray, All RAL color can be customized

Material	low carbon steel wire
Wire Diameter	3.0mm,4.0mm
Mesh Hole	76.2 x 12.7mm ,75x13mm, 76x25mm
Height	2400mm, 2500mm, 3000mm
Width	2500mm, 3000mm
Surface Treatment	hot dipped galvanized, galvanized and powder coated,pvc coated
Features	Anti-climb: More small openings makes it difficult to climb and penetrate.
	Anti-cut: Robust wire and welded joints make it impossible to be cut by conventional wire cutters
Processing of fence	Material - Straightening & cut wire - Welding - Galvanizing - Powder coating - Package

Panel size H*W (mm)	Post size L*W*T(mm)	Post Height	Clamp Inter/Corners
2000*2400	60*60*2.5mm	2700	7/14
2400*2515	60*60*2.5mm	3100	9/18
2997*2515	80*80*2.5mm	3800	11/22
3607*2515	100*60*3mm	4500	13/26
4204*2515	100*100*4mm	5200	15/30
4496*2515	100*100*5mm	5500	16/32
5207*2515	120*120*5mm	6200	18/36

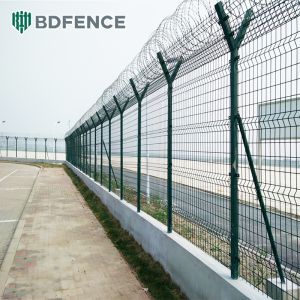

It supply more security when the Clearvu fencing add the barbe wire or razor barbe wire.

Product packaging

1. In bulk,with containers or plastic inside,metal pallet out side,standard export packaging.
2. Between each panel there will be a sponge to avoid friction,in order to protect the panels.
3.There will be 4 metal corners to make the pallet stronger.

Product packaging

Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety

metal fences. We engaged in the production, research, development, sales, and services of metal

fences, gates, and barriers.

BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough

knowledge on how to produce top-quality fencing which led us to become a trusted

supplier & exporter globally.

As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing

metal fences with excellent quality. With professional experience in the metal fence business,

our skilled staff members are able to provide the highest level of support, including drafting

and engineering of our products. In order to meet our clients’ project requirements.

What clients said about BD Fence.

Our Service

1. Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .

FAQ

1.Are you a factory?

Answer:yes,we are a factory that manufactured fence for 32 years.

2.Can you send the cargo to seaport? Where is your nearest sea port?

Answer:yes, sure ,our nearest seaport is Xingang Port.

3.How about the height fence?

Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.

4.Can I have more details of the fence, such as real picture and the accessories?

Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.

5.Can you make the color according to our request?

Answer: yes,we can ,the common color is Green,Yellow,White,Gray. If you have more question, please contact us for best service

6.How long does it take to produce?

3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.

7.Do I need to hire a professional installer for my metal fence?

All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
